gntx-r digital rearview mirror
gntx-r digital rearview mirror

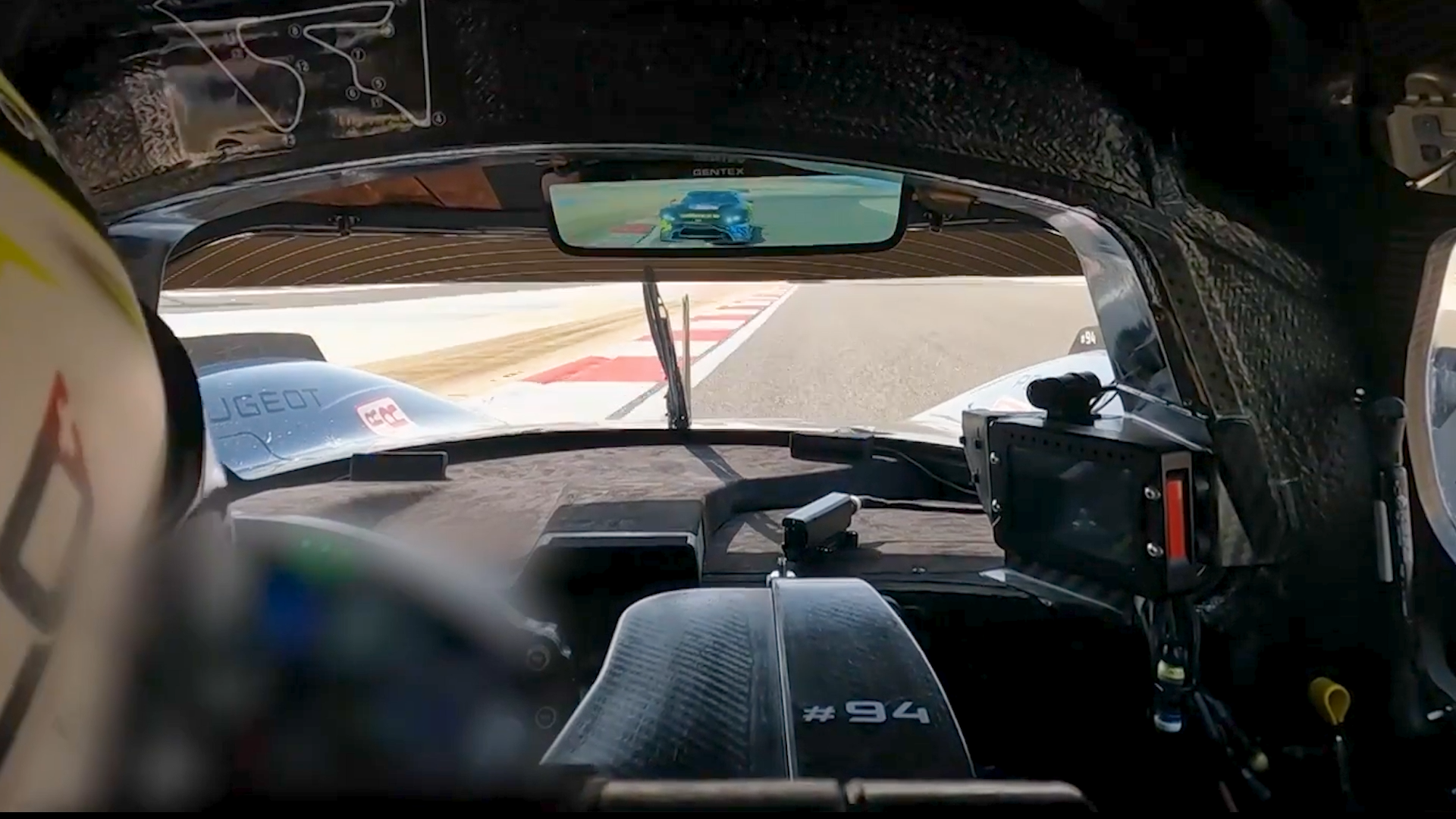

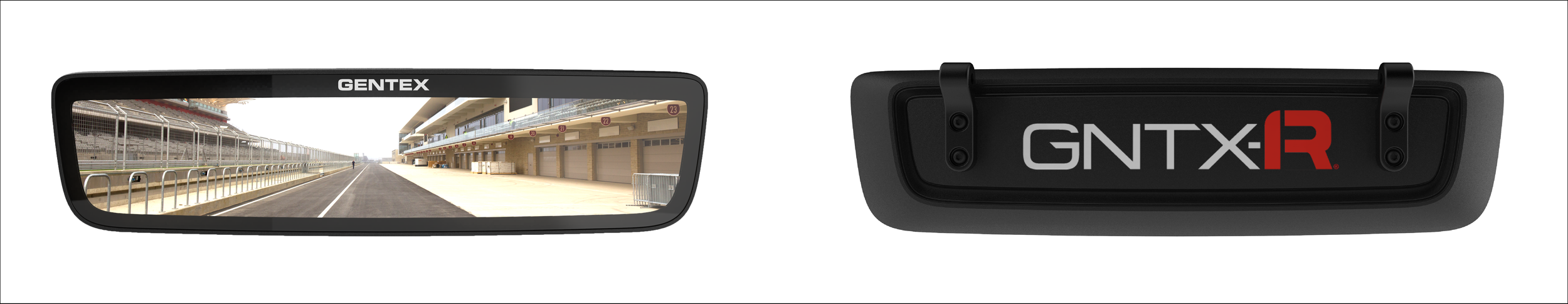

No rear window? No worries. Our Full Display Mirror (FDM®) system consists of a custom, high-dynamic-range imager that captures video of the vehicle’s rearward view and streams it to a unique mirror-integrated display. The FDM can function either as a standard mirror or a clear, bright, panoramic display with an unobstructed rearward view.
The Details
Waterproof
Resolution: 1.7MP
Frame Rate: 60 Frames per second (fps)
Dynamic Range: 120dB HDR
Lens: Hydrophobic Lens
Dimensions: W: 48.2mm H: 27.2mm D: 44.1mm
Weight: ≈30g
Camera Specs
What’s in the box
Wire Harness
3M High Bond Adhesive
Windscreen Mirror Bracket
Sticker Kit
Resolution: 1600x320, (4800x320 dots), 170ppi
Technology: LTPS-TFT-LCD, IPS (FFS)
Brightness: 1500 Candela/m²
Contrast: 500:1

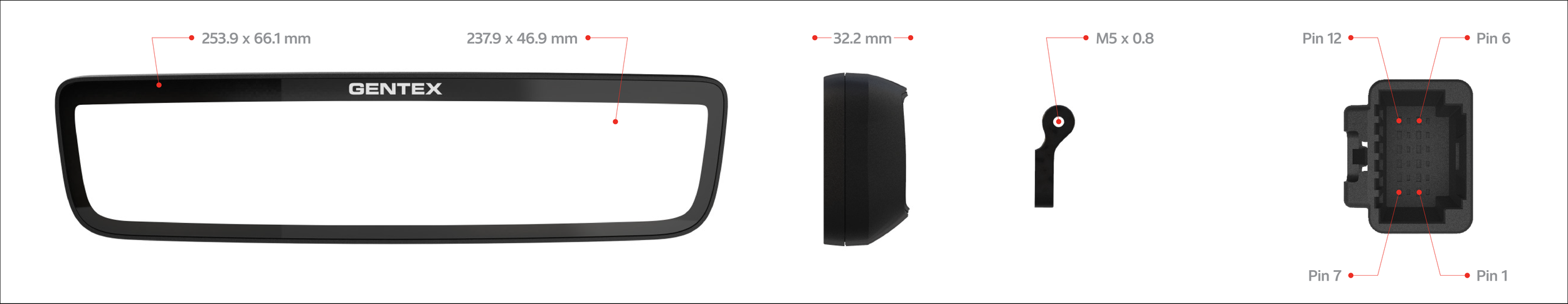

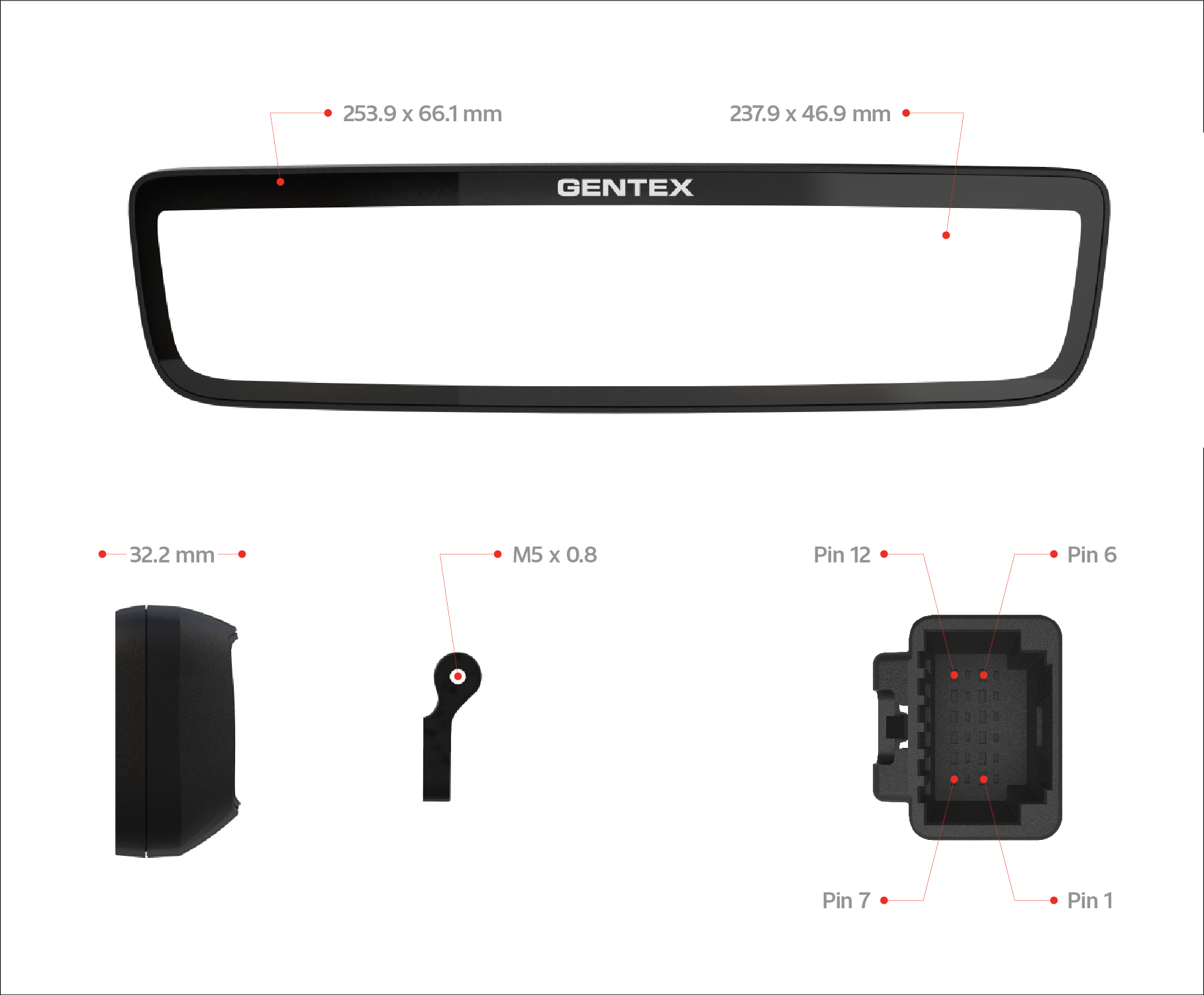

Active Area: W: 237.9mm H: 46.9mm
Dimensions: W: 253.9mm H: 66.1mm
Weight: 468g
CAN Bus: 1Mbps High-speed
Display Specs
Connector Pin-Out
Cav
1
2
3
4
8
Circuit
12v Power
Ground
CAN(+)
CAN(-)
Display Brightness
Color
Red
Brn
Grn
Yel
Gry
Description
12v Power
Ground
-
-
When 12v is present, display will dim
>>
